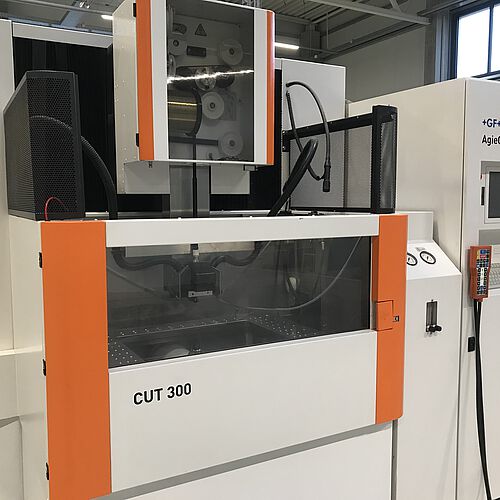

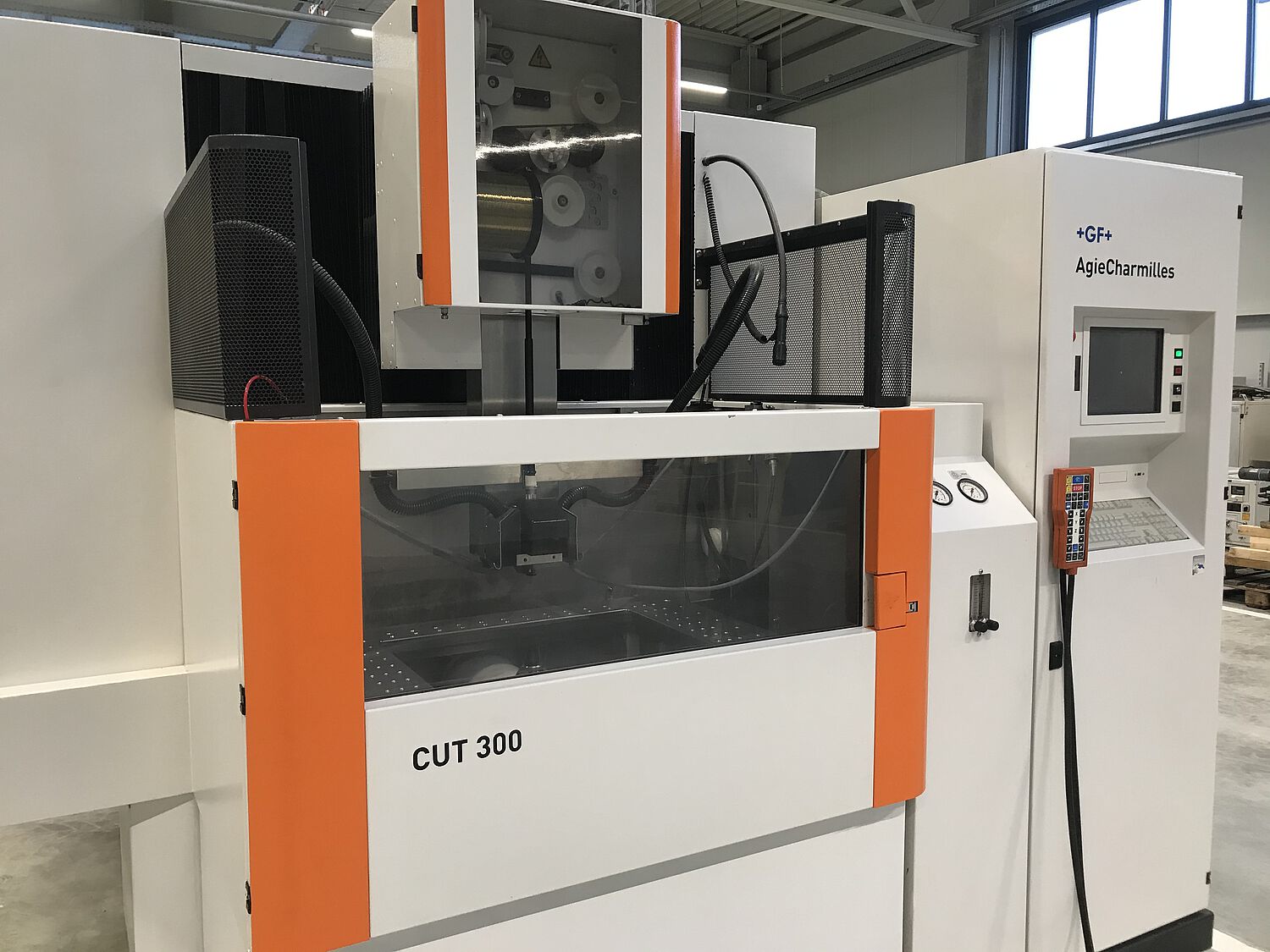

GF AgieCharmilles CUT 300
GF AgieCharmilles CUT 300
Key data product
| Travel (X/Y/Z) | 500 x 350 x 400 mm |
| Max. workpiece dimensions (X/Y/Z) | 1200 x 700 x 400 mm |
| Max. workpiece weight | 1500 kg |
| Dimensions of table | 900 x 600 mm |
| Max. Taper | 30° at 400 mm height |
| Travel (U/V) | 550 x 350 mm |
| Available wire diameters | 0,15 - 0,33 mm |
| Max. cutting speed | 340 mm²/min |
| Min. finishing | Ra 0,2 µm |
| Machine dimensions | 2600 x 2600 x 2340 mm |
| Machine weight | 3300 kg |
| Dielectric | 1200 Liter |
| Cooling system | external cooling required |
Request for:
GF AgieCharmilles CUT 300
Request for:
GF AgieCharmilles CUT 300
Key data product
| Travel (X/Y/Z) | 500 x 350 x 400 mm |
| Max. workpiece dimensions (X/Y/Z) | 1200 x 700 x 400 mm |
| Max. workpiece weight | 1500 kg |
| Dimensions of table | 900 x 600 mm |
| Max. Taper | 30° at 400 mm height |
| Travel (U/V) | 550 x 350 mm |
| Available wire diameters | 0,15 - 0,33 mm |
| Max. cutting speed | 340 mm²/min |
| Min. finishing | Ra 0,2 µm |
| Machine dimensions | 2600 x 2600 x 2340 mm |
| Machine weight | 3300 kg |
| Dielectric | 1200 Liter |
| Cooling system | external cooling required |
