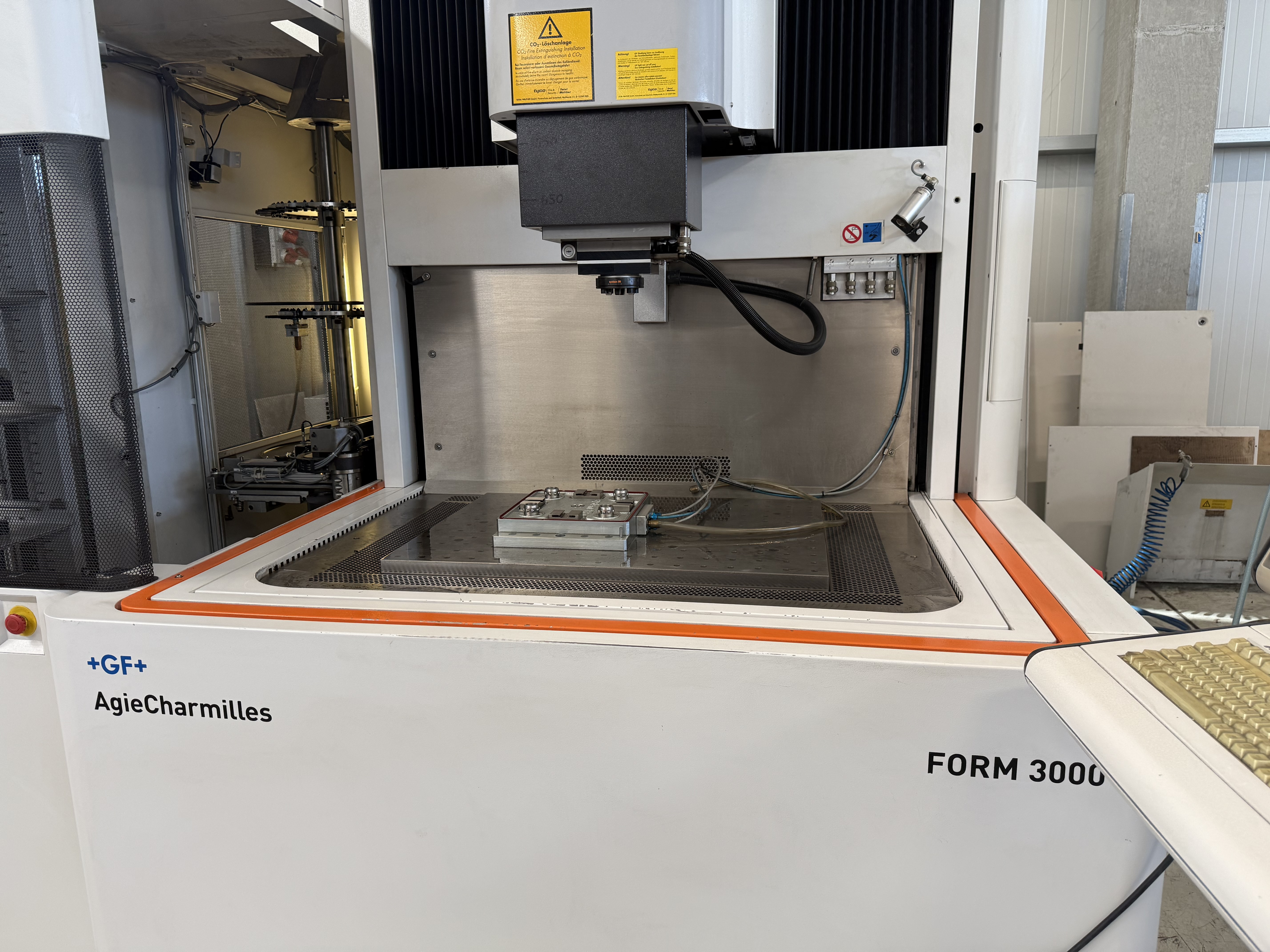

GF AgieCharmilles FORM 3000
GF AgieCharmilles FORM 3000
Key data product
| Travel (X/Y/Z): | 600 x 400 x 500 mm |
| Max. workpiece dimensions (X/Y/Z): | 1280 x 1040 x 450 mm |
| Max. workpiece weight: | 2000 kg |

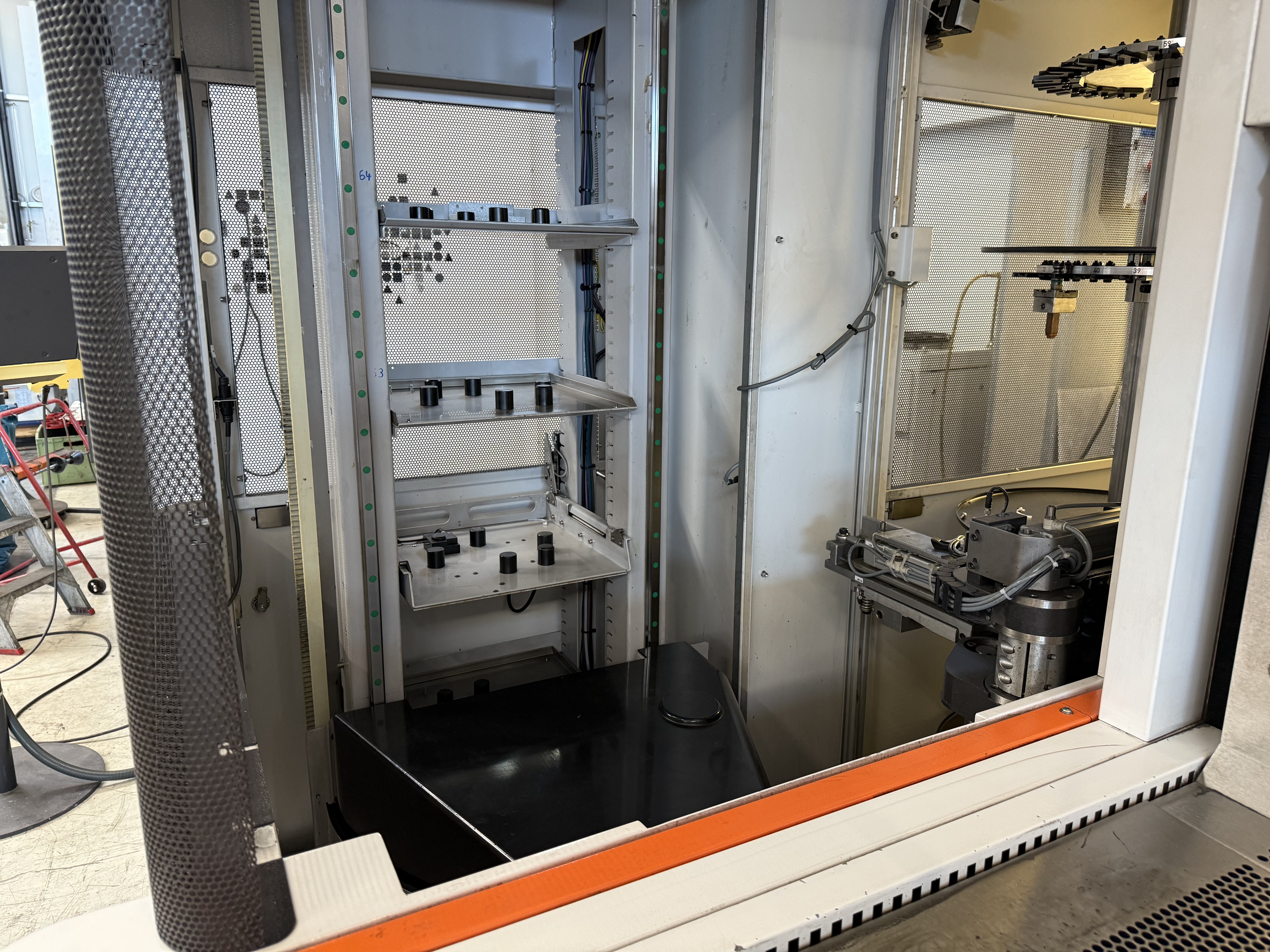

| Automation: | CAPA 1 |
| Distance table / Quill min.: | 200 mm |
| Distance table / Quill max.: | 700 mm |
| Pinolenhub: | 500 mm |
| Dielectric: | 900 Liter |
| Current: | 60 Ampere |
| Min. finish: | Ra 0,1 µm |
| Max. electrode weight: | 50 kg |
| C-Axis: | Included U=0-100 rpm |
| Machine weight: | 5900 kg |
| Machine dimensions: | 1790 x 2790 x 3110 mm |
