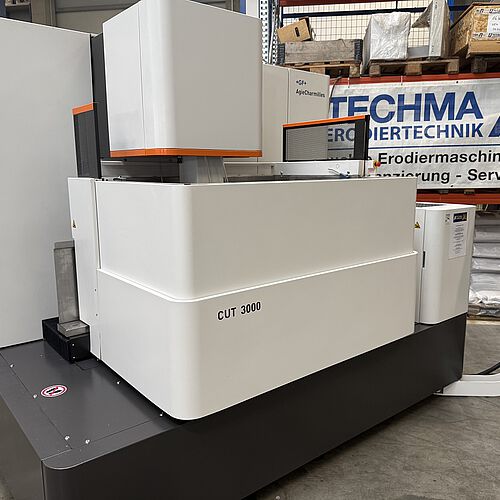

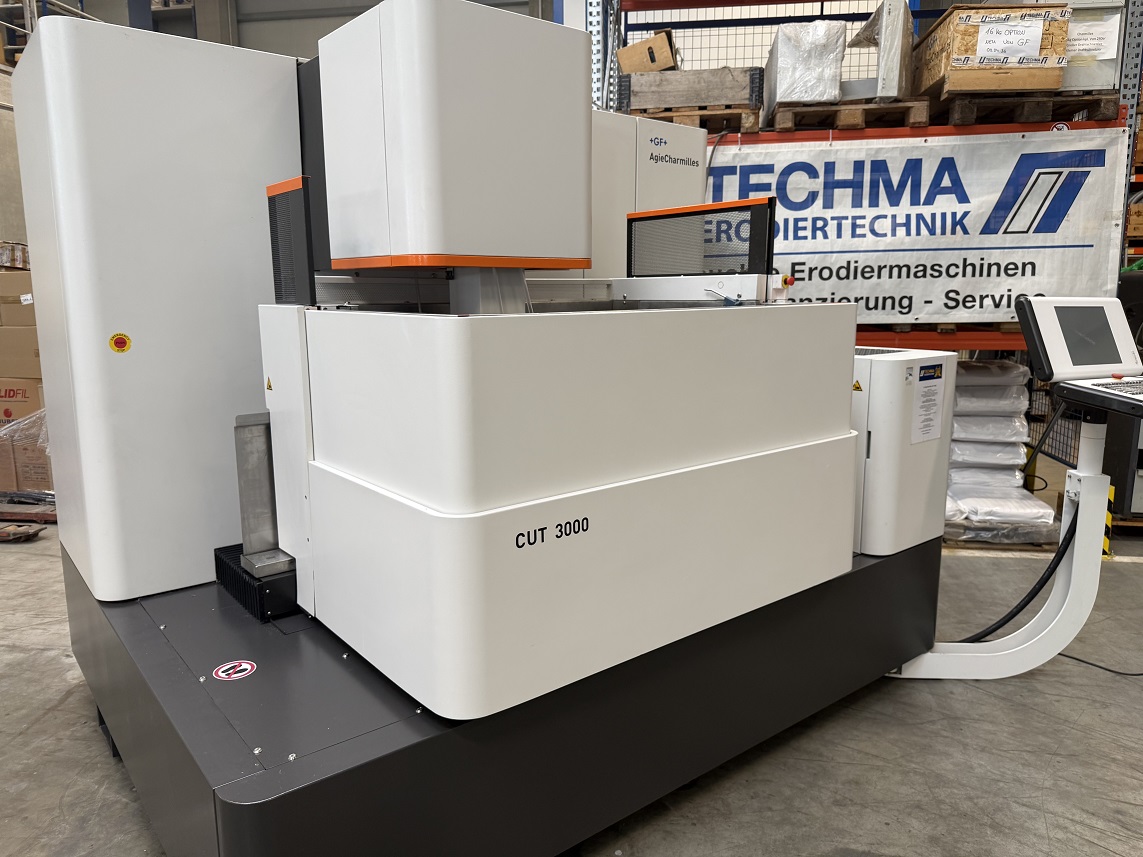

GF AgieCharmilles CUT 3000
GF AgieCharmilles CUT 3000
Key data product
| Travel (X/Y/Z) | 500 x 350 x 256 mm |
| Max. workpiece dimensions (X/Y/Z) | 1050 x 650 x 250 mm |
| Max. workpiece weight | 800 kg |
| Dimensions of table | 850 x 550 mm |
| Max. Taper | 30° at 100 mm height |
| Travel (U/V) | +/- 70 mm |
| Wire threading | automatic |
| Available wire diameters | 0,10 - 0,30 mm |
| Min. finishing | Ra 0,05 µm |
| Machine dimensions | 2685 x 2115 x 2232 mm |
| Machine weight | 4500 kg |
| Dielectric | 1000 l |
| Cooling | external cooling required |
| Generator | AGIE IPG-V |
